RUOTA Q 150X55/55 CC S.FISSO E70+P.PIEDE

/////6042PP

Article 6042PP

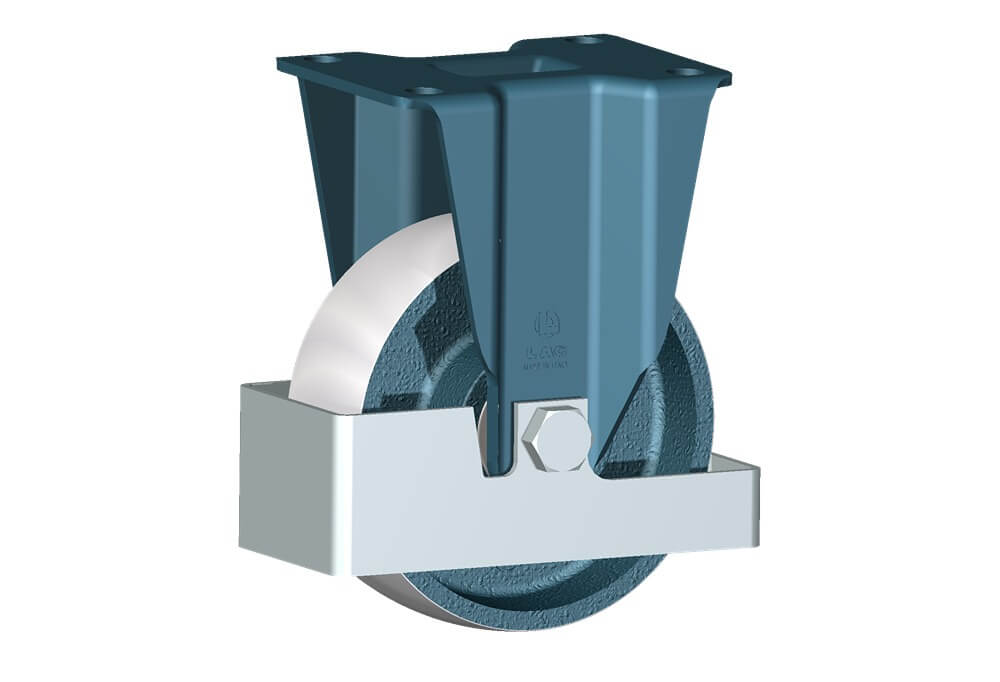

RUOTA Q 150X55/55 CC S.FISSO E70+P.PIEDE

Wheel series Q

Cast iron wheels available with ball bearings or plain bore.
Wheel fitted with ball bearings.

Support Series E70

Extra heavy duty fork assemblies fabricated from heavy gauge sheet steel; swivelling with a thrust and taper roller bearings. Finish: blue paint.

The item is fitted with a safety foot-guard with floor clearance (h) <= 35mm.

Download datasheet Ask for information Ask for 3D File

Technical Data

Wheel diameterD150 mm
Tyre widthE55 mm
Outer faces bearings distanceV54 mm
Overall heightH202 mm
Ground clearanceh30,00 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM12
Load Capacity1000 kg
RUOTA Q 150X55/55 CC S.FISSO E70+P.PIEDE

 High load capacity Super smooth rolling
RUOTA Q 150X55/55 CC S.FISSO E70+P.PIEDE

RUOTA Q 150X55/55 CC S.FISSO E70+P.PIEDE
