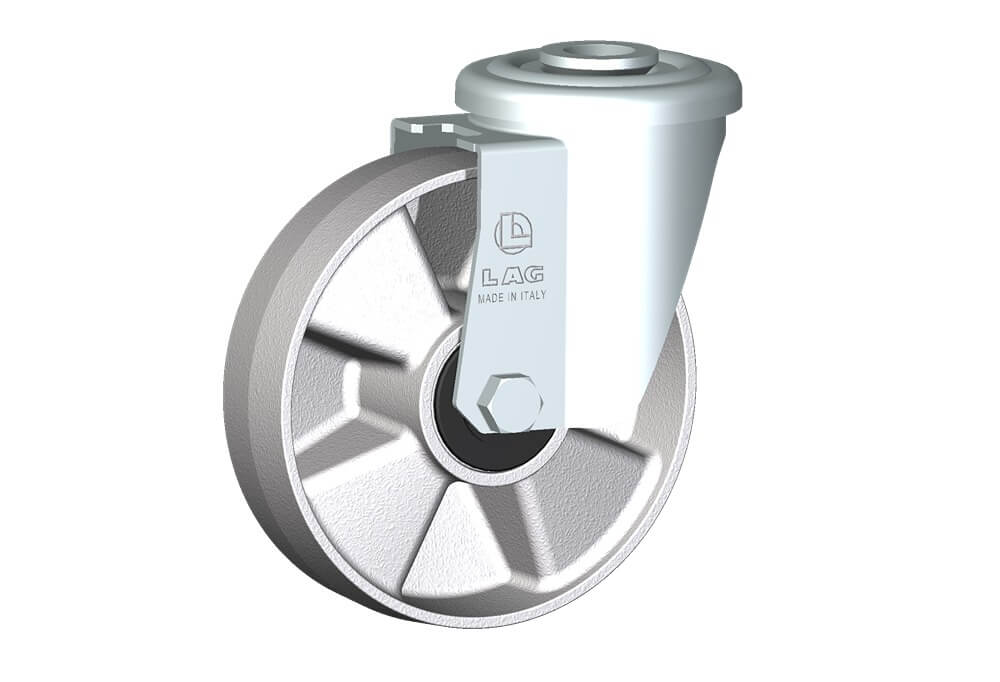

RUEDA U 110X30/40 CC AG.LISO M22 F.12

Article 39418GB

Wheel series U

Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings.
Wheel fitted with ball bearings.

Castor series M22

M22 series, Medium-light pressed steel fork assemblies; swivel version has double ball raceways. Zincplated.

Download the PDF Info

Technical data

Wheel diameterD110 mm
Tyre widthE30,0 mm
Bearing seat diameters35 mm
Bore diameterd15 mm
Outer faces bearings distanceV38 mm
Weight article0,790 kg
Hub widthL40 mm
Overall heightH133 mm
OffsetF37 mm
Fork widthU40 mm
Load Capacity120 kg
Wheel series U with fork M22 Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings. Wheel fitted with ball bearings.

Wheel series U with fork M22 Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings. Wheel fitted with ball bearings.

Wheel series U with fork M22 Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings. Wheel fitted with ball bearings.

Related Articles

Spare part wheel: 39018CC
