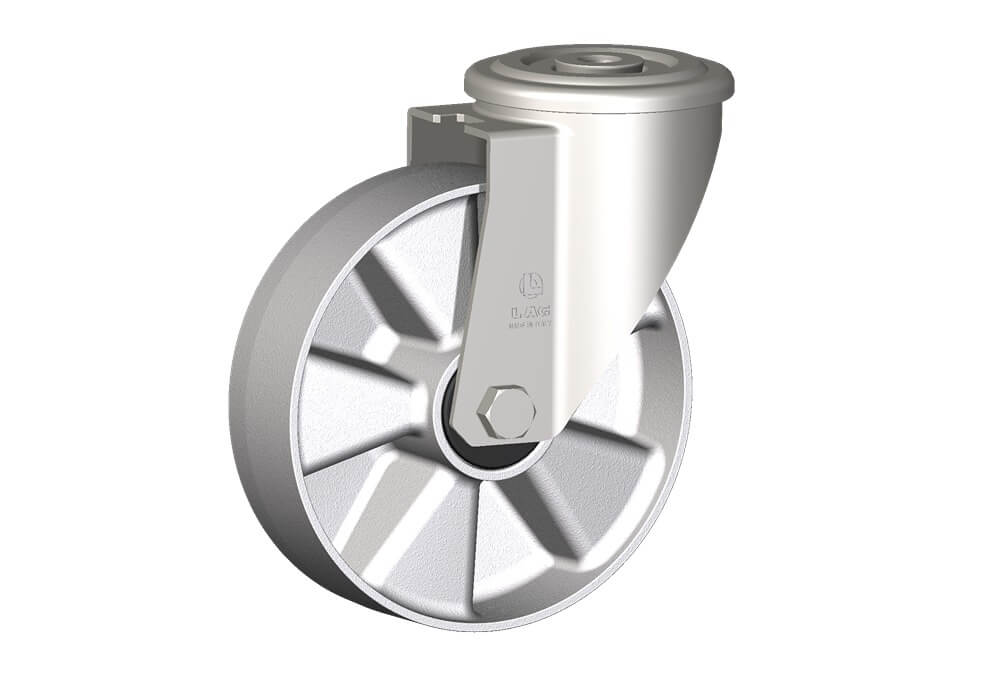

RUOTA U 175X50/60 CC SFP X20 F.14

Article 39236HE

Wheel series U

Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings.
Wheel fitted with ball bearings.

Castor series INOX20

Inox20 series, polished stainless steel forks, swivels with double ball races.

Technical data

Wheel diameterD175 mm
Tyre widthE50,0 mm
Bearing seat diameters47 mm
Bore diameterd20 mm
Outer faces bearings distanceV54 mm
Weight article2,330 kg
Hub widthL60 mm
Overall heightH215 mm
OffsetF57 mm
Fork widthU60 mm
Load Capacity370 kg
Wheel series U with fork INOX20 Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings. Wheel fitted with ball bearings.

Wheel series U with fork INOX20 Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings. Wheel fitted with ball bearings.

Wheel series U with fork INOX20 Die-cast aluminium wheels, for high temperature applications: -40°C / +270°C (-40°F / +518°F). Available with standard or stainless steel ball bearings. Wheel fitted with ball bearings.

Related Articles

Spare part wheel: 39036CC
