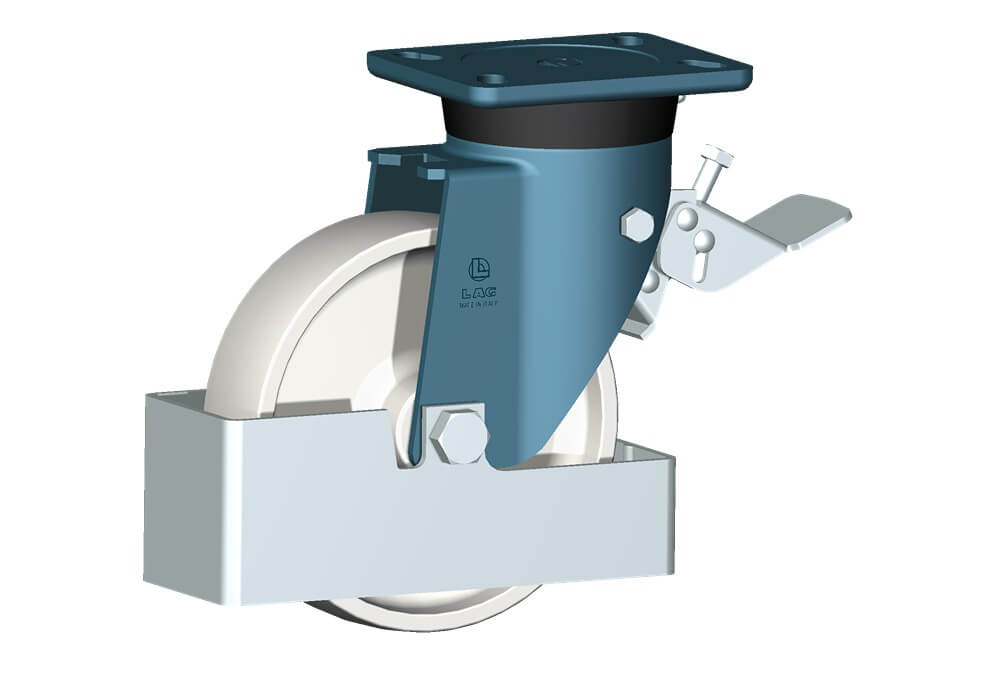

Article 6155FVPP

RUOTA P 175X50/60 FP SPG E70 +FV+P.PIEDE

Wheel series P

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.
Plain bore wheel.

Support Series E70

Extra heavy duty fork assemblies fabricated from heavy gauge sheet steel; swivelling with a thrust and taper roller bearings. Finish: blue paint.
Leading brake, total stop, adjustable.
The item is fitted with a safety foot-guard with floor clearance (h) <= 35mm.

Technical Data

Wheel diameter		D	175 mm
Tyre width		E	50 mm
Overall height		H	238 mm
Ground clearance		h	20,50 mm
Top plate outer dimensions		AxB	135x110 mm
Bolt hole spacing		axb	105x75 mm
Bolt hole spacing		axb	105x80 mm
Fixing bolt diameter		g	M12
Offset		F	70 mm
Load Capacity			500 kg
