WHEEL LB 150X40/50 INOX RB SWIVEL X20+FR

/////31067BFR

Article 31067BFR

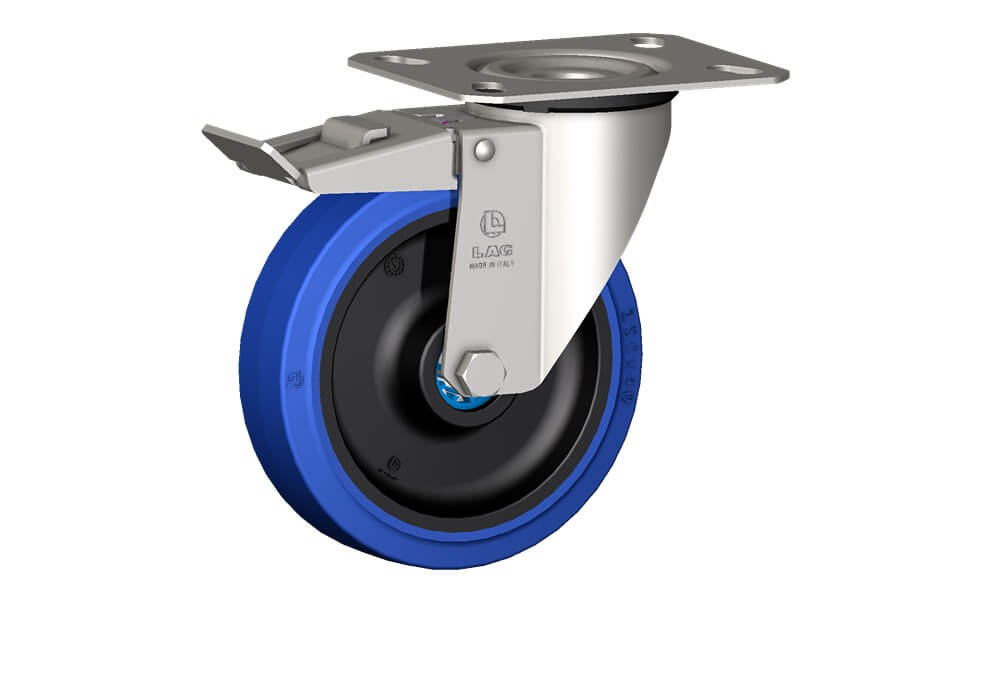

WHEEL LB 150X40/50 INOX RB SWIVEL X20+FR

Wheel series LB

Wheels with black polyamide 6 centre, blue elastic non-marking rubber mould-on solid tyre available with ball bearings, standard or stainless steel roller bearings od plain bore.
Wheel fitted with stainless steel roller bearing.

Support Series INOX20

Inox20 series, polished stainless steel forks, swivels with double ball races.
Trailing foot brake - total stop.

Download datasheet Ask for information Ask for 3D File

Technical Data

Wheel diameterD150 mm
Tyre widthE40 mm
Overall heightH181 mm
Top plate outer dimensionsAxB135x110 mm
Bolt hole spacingaxb96x56 mm
Bolt hole spacingaxb105x75 mm
Bolt hole spacingaxb105x80 mm
Fixing bolt diametergM10
OffsetF51 mm
Load Capacity240 kg
WHEEL LB 150X40/50 INOX RB SWIVEL X20+FR

 High rebound capacity Non-marking Noiseless
WHEEL LB 150X40/50 INOX RB SWIVEL X20+FR

WHEEL LB 150X40/50 INOX RB SWIVEL X20+FR
