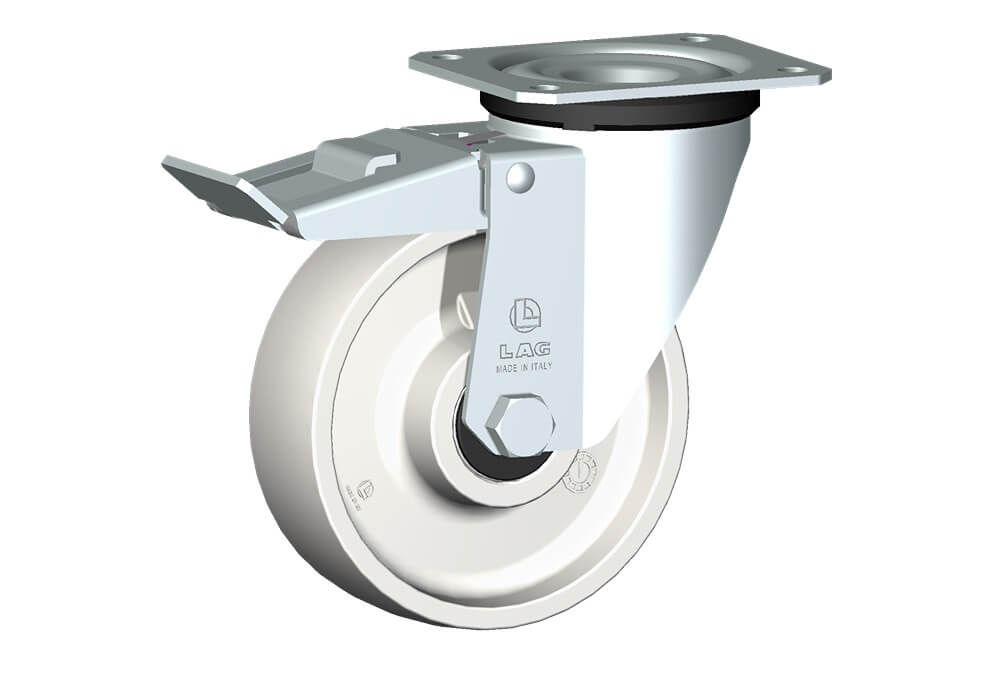

WHEEL P 125X40/50 BB SWL M22L + BRAKE

Article 18717FR

Wheel series P

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.
Wheel fitted with ball bearings.

Castor series M22

M22 series, Medium-light pressed steel fork assemblies; swivel version has double ball raceways. Zincplated.

Technical data

Wheel diameterD125 mm
Tyre widthE40,0 mm
Bearing seat diameters35 mm
Bore diameterd15 mm
Outer faces bearings distanceV48 mm
Weight article1,360 kg
Hub widthL50 mm
Overall heightH159 mm
Top plate outer dimensionsAxB102x83 mm
Bolt hole spacingaxb80x60 mm
OffsetF49 mm
Fork widthU50 mm
Load Capacity200 kg
WHEEL P 125X40/50 BB SWL M22L + BRAKE

WHEEL P 125X40/50 BB SWL M22L + BRAKE

WHEEL P 125X40/50 BB SWL M22L + BRAKE

Related Articles

Spare part wheel: 4074CC
Basic version: 18717
Version with thread-guards: 18717PF
Version with footguard: 18717PP
Version with footguard: 18717FRPP
Directional Lock: P3941
