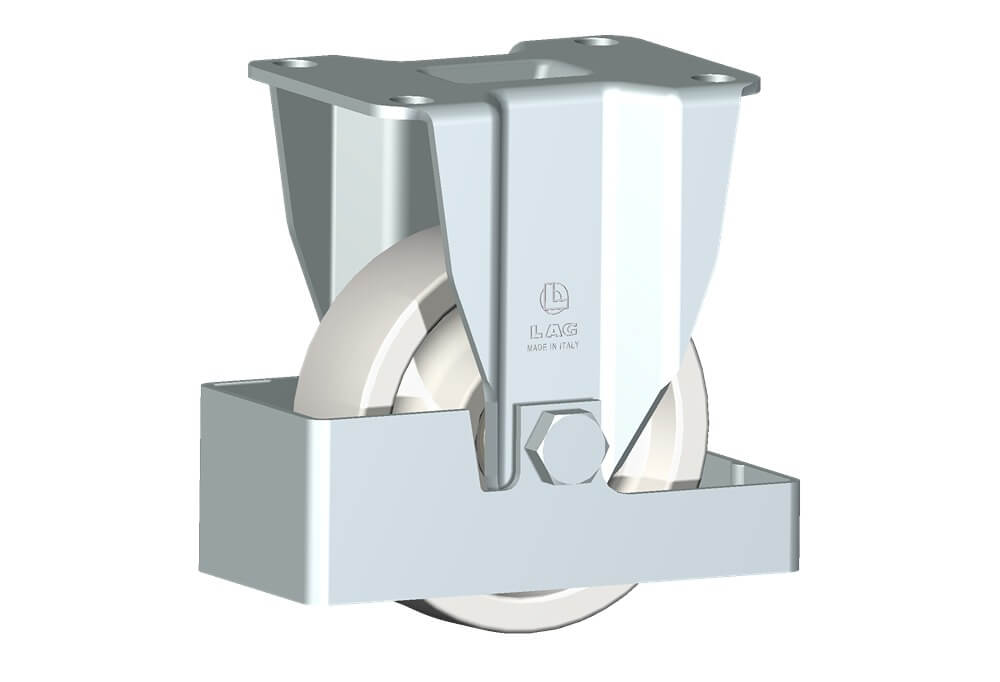

Article 17937PP

RUOTA P 125X45 HD CC S.FISSO P60/60+P.PI

Wheel series P

Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.
Wheel fitted with ball bearings.

Support Series M40

M40 series, medium-heavy duty pressed steel forks, swivel with double ball races & 'water resistant' protections. Zincplated.

The item is fitted with a safety foot-guard with floor clearance (h) <= 35mm.

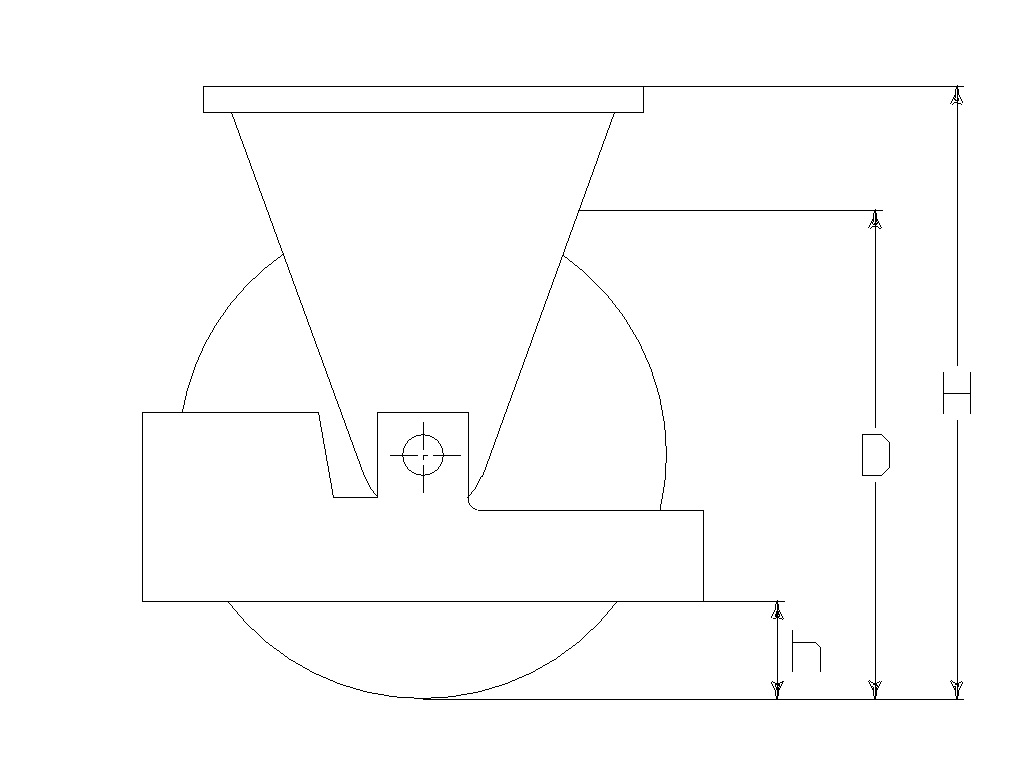

Technical Data

Wheel diameter		D	125 mm
Tyre width		E	45 mm
Outer faces bearings distance		V	44 mm
Overall height		H	172 mm
Ground clearance		h	17,50 mm

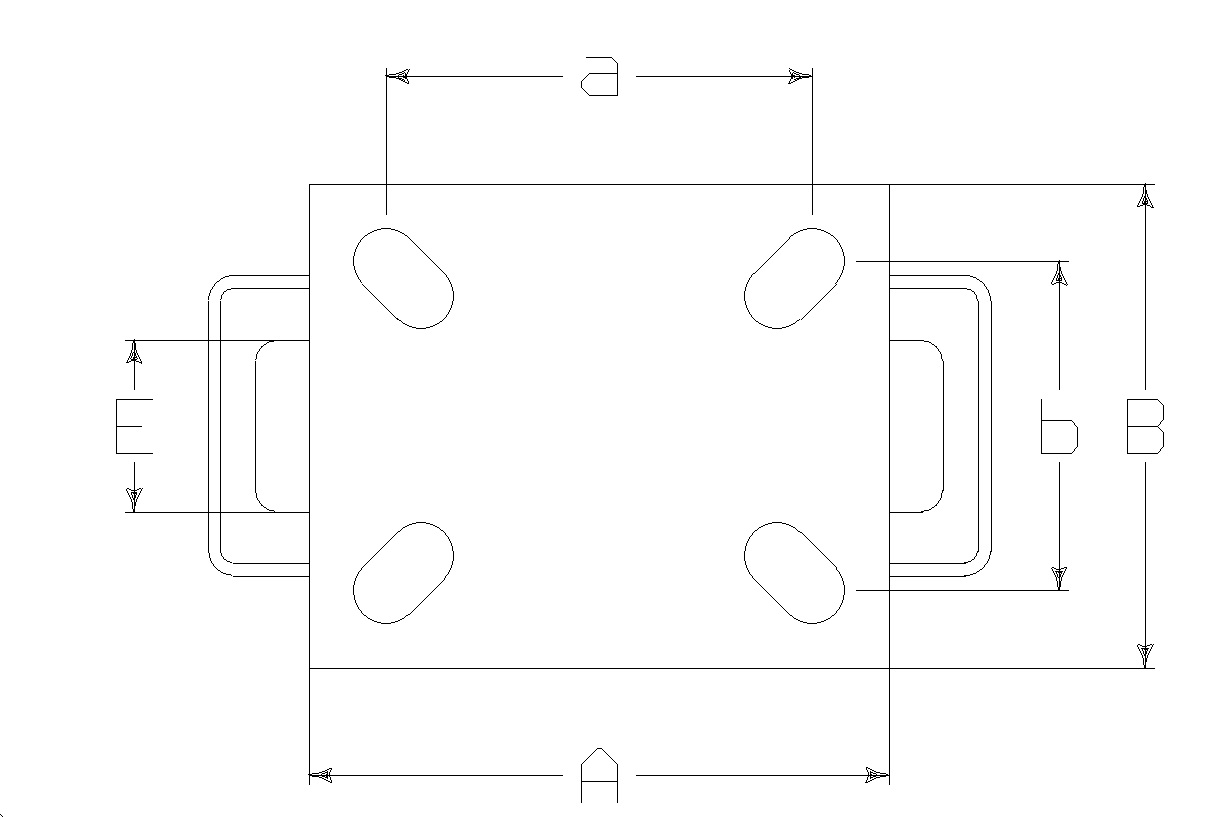

Top plate outer dimensions		AxB	135x110 mm
Bolt hole spacing		axb	105x75 mm
Bolt hole spacing		axb	105x80 mm
Fixing bolt diameter		g	M12
Load Capacity			700 kg
