Article 17080FR

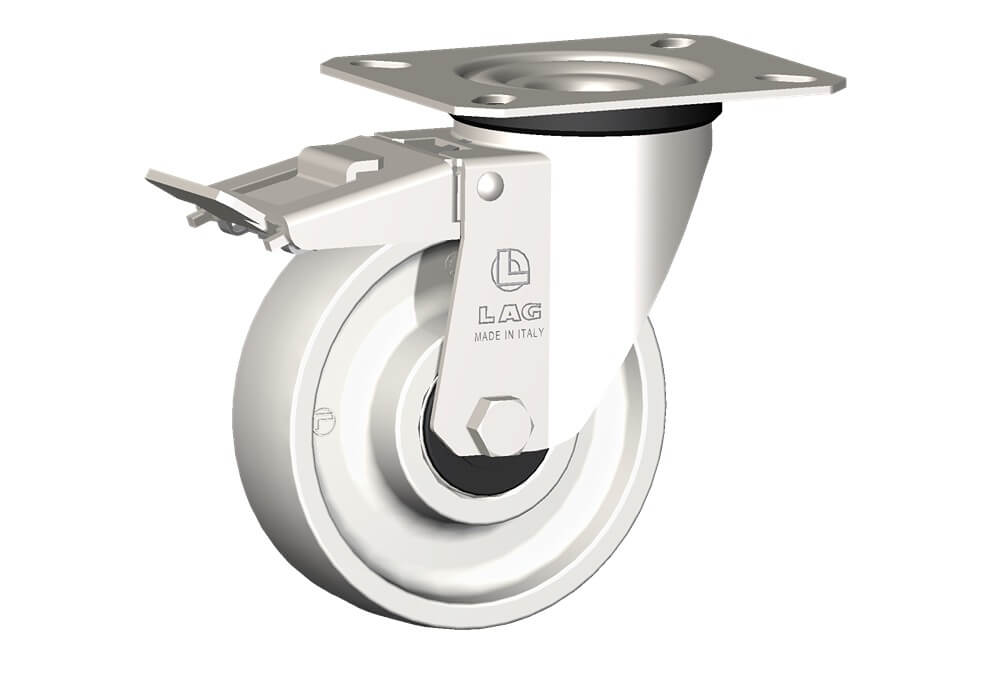

WHEEL P 100X30/40 BBX SWL X20 +BRAKE

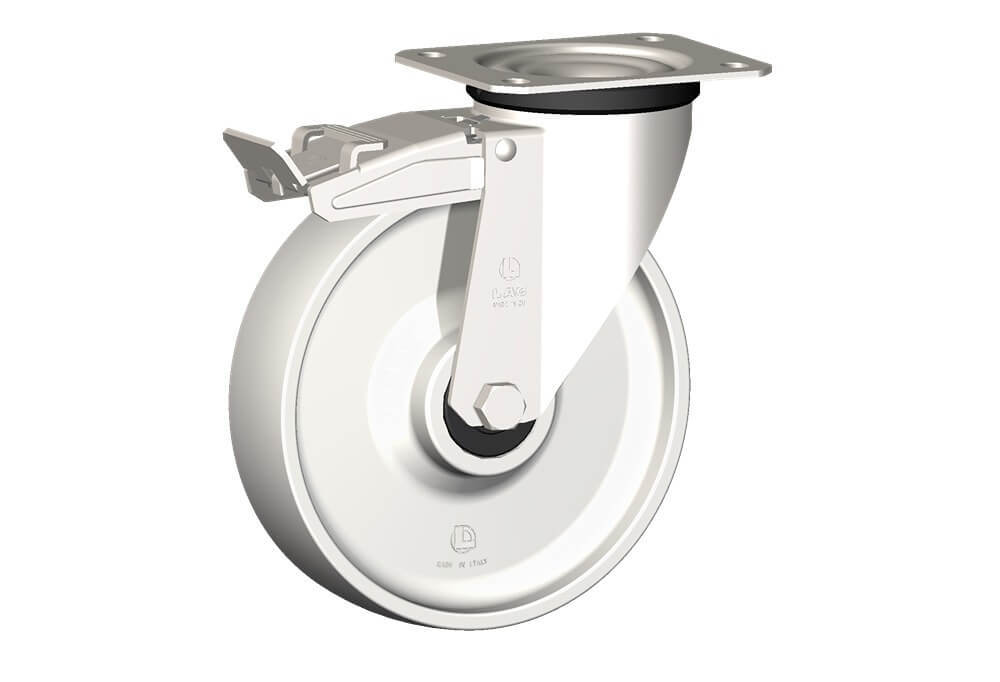

Wheel series P
Monolitic polyammide 6 wheels available with standard shielded or stainless steel precision ball bearings; standard or stainless steel roller bearing; plain bore.
Wheel fitted with precision stainless steel ballbearings, sealed (2RS).
Support Series INOX20
Inox20 series, polished stainless steel forks, swivels with double ball races.
Trailing foot brake - total stop.
Technical Data
Wheel diameter | ![]() | D | 100 mm |
Tyre width | ![]() | E | 30 mm |
Outer faces bearings distance | ![]() | V | 38 mm |
Overall height | ![]() | H | 128 mm |
Top plate outer dimensions | ![]() | AxB | 102x83 mm |
Bolt hole spacing | ![]() | axb | 76x55 mm |
Bolt hole spacing | ![]() | axb | 80x60 mm |
Fixing bolt diameter | ![]() | g | M8 |
Offset | ![]() | F | 37 mm |
Load Capacity | ![]() | 150 kg |
